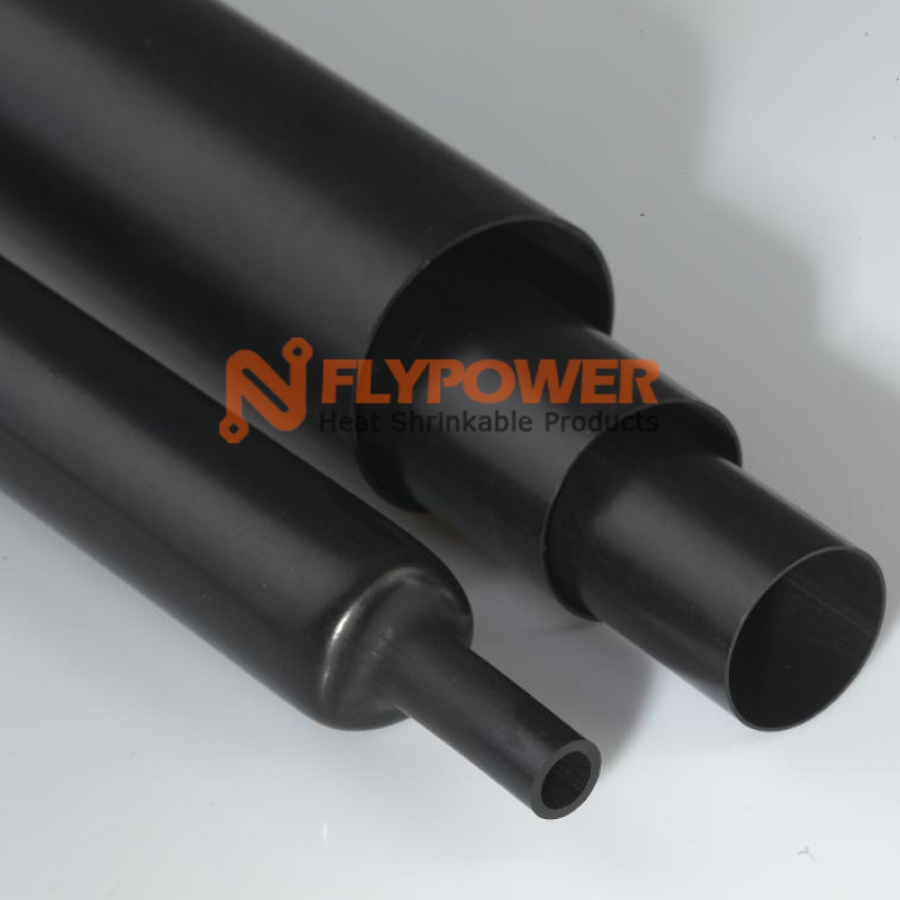

SEMI-RIGID MEDIUM WALL TUBING WITHOUT HOT MELT ADHESIVE 3:1 BH-R2
- Applications: Semi-rigid medium wall tubing without hot melt adhesive designed for applications to protect electrical cable splices, terminations and joints where electrical insulation are required
- Characteristics: BH-R2 is semi-rigid medium wall tubing without hot melt adhesive. Having properties of excellent insulating and resistant to impact and abrasion.3:1 shrink ratio allows it easily fit over irregular shape and large connectors
- Operating temperature range: Minimum fully recovery temperature: 120℃
- Approvals / Specifications: CE,RoHS
- Colors: Black
|
Normal size(mm) |
As supplied (mm) |
After recovered (mm) |
Style |
Standard length(mm) |
|
|
Inside diameter(min.) |
Inside diameter(Max.) |
Wall thickness(mm) |
|||
|
BH-R2 8/2 |
8 |
2 |
1.7 |
— |
30M/Spoll |
|
BH-R2 12/3 |
12 |
3 |
2.0 |
— |
30M/Spoll |
|
BH-R2 16/5 |
16 |
5 |
2.2 |
— |
30M/Spoll |
|
BH-R2 22/6 |
22 |
6 |
2.2 |
O |
1000-1500mm |
|
BH-R2 33/8 |
33 |
8 |
2.5 |
O |
1000-1500 mm |
|
BH-R2 40/12 |
40 |
12 |
2.5 |
O |
1000-1500 mm |
|
BH-R2 55/16 |
55 |
16 |
2.7 |
O |
1000-1500 mm |
|
BH-R2 65/19 |
65 |
19 |
2.8 |
O |
1000-1500 mm |
|
BH-R2 75/22 |
75 |
22 |
3.0 |
O |
1000-1500 mm |
|
BH-R2 85/25 |
85 |
25 |
3.0 |
O |
1000-1500 mm |
|
BH-R2 95/25 |
95 |
25 |
3.0 |
O |
1000-1500 mm |
|
BH-R2 115/34 |
115 |
34 |
3.0 |
O |
1000-1500 mm |
|
BH-R2 140/42 |
140 |
42 |
3.0 |
— |
1000-1500 mm |
|
BH-R2 160/50 |
160 |
50 |
3.0 |
— |
1000-1500 mm |
|
BH-R2 180/58 |
180 |
58 |
3.0 |
— |
1000-1500 mm |
|
BH-R2 205/65 |
205 |
65 |
3.0 |
— |
1000-1500 mm |
|
BH-R2 235/65 |
235 |
65 |
3.0 |
— |
1000-1500 mm |
|
BH-R2 265/75 |
265 |
75 |
3.0 |
— |
1000-1500 mm |
|
BH-R2 300/85 |
300 |
85 |
3.0 |
— |
1000-1500 mm |
|
BH-R2 350/100 |
350 |
100 |
3.0 |
— |
1000-1220 mm |
*Style “O” : Round shape or Oval, “ – ”:Flattened
|
Property |
Test Method |
Typical Data |
|
Operating temperature |
IEC 216 |
-55 to +110℃ |
|
Tensile strength |
ASTM D2671 |
≥14MPa |
|
Tensile strength after aging |
ASTM D 2671/150℃, 168hrs. |
≥12MPa |
|
Elongation at break |
ASTM D2671 |
≥400% |
|
Elongation at break after aging |
ASTM D 2671/150℃, 168hrs. |
≥300% |
|
Density |
ASTM D792 |
1.05g/cm3 |
|
Longitudinal shrinkage |
UL224 |
0 to -10% |
|
Dielectric strength |
IEC243 |
≥20kV/mm |
|
Volume resistance |
IEC93 |
≥ |
|
Eccentricity |
ASTM D2671 |
<30% |
|
Copper stability |
ASTM D2671 |
Pass |
|
Resistance to stress cracking (50℃) |
ASTM D1693 |
No Cracking |
|
Water absorption |
ISO 62/23℃,14days |
<0.15% |
