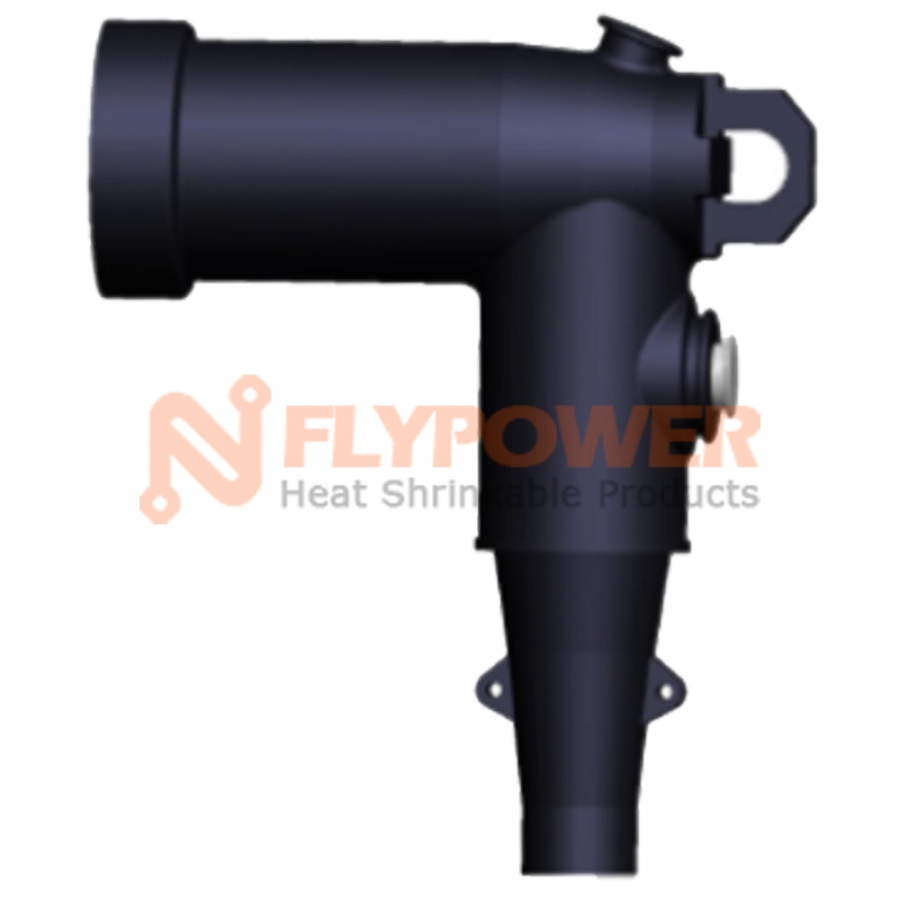

15KV screened elbow PT connector BH-ECPT
- Applications: BH-ECPT 15kV Elbow type PT connector is applied for the supply of power/metering Control for the electric operation system of transformer EHV tower. with the function of complete insulation, sealing and screened, the suitable range of cable is 35~120mm2.
-
Characteristics: 100% factory tested before shipment, quality guaranteed;
Reliable locking system with simple and quick installation;
Combined with insulation, sealing and touchable screened. - Operating temperature range: N/A
- Approvals / Specifications: Meet: IEC60502-4, GB12706.4.
- Colors: Black
|
Size(mm) |
Main insulation diameter (mm) |
Cable cross-section |
|
8.7/15 kV(mm2) |
||
|
Φ 16 |
17-19 |
35-50 |
|
Φ 19 |
20-22 |
70-95 |
|
Φ 21 |
23-24 |
120 |

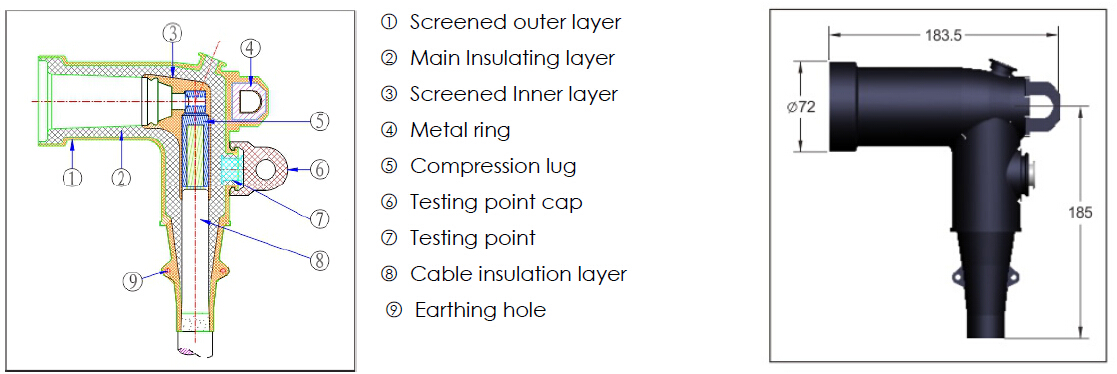

Main Compounds
1.Main body 2.Compression lug 3.Testing point cap 4.Fixing device
5. Earthing wire 6. Sand paper 7. Cleaning tissue 8. Silicon grease
|
Performance |
BH-ECPT-101 |
|
Rated voltage |
8.7/15（17.5）kV |
|
Rated continuous voltage |
15kV |
|
Max. operating voltage |
17.5kV |
|
Rated continuous current |
200A |
|
Partial discharge |
15kV/≤10pC |
|
A.C withstand voltage |
39kV/5min |
