Halogen-free, Low Smoke Emission, Highly Flame Retardant Heat Shrink Marker Sleeve BH-DIN
- Applications: BH-DIN to meet the special identifying requirement of high speed rail, communication, precision instruments, automobile, shipbuilding, spacecraft, aircraft and nuclear island etc

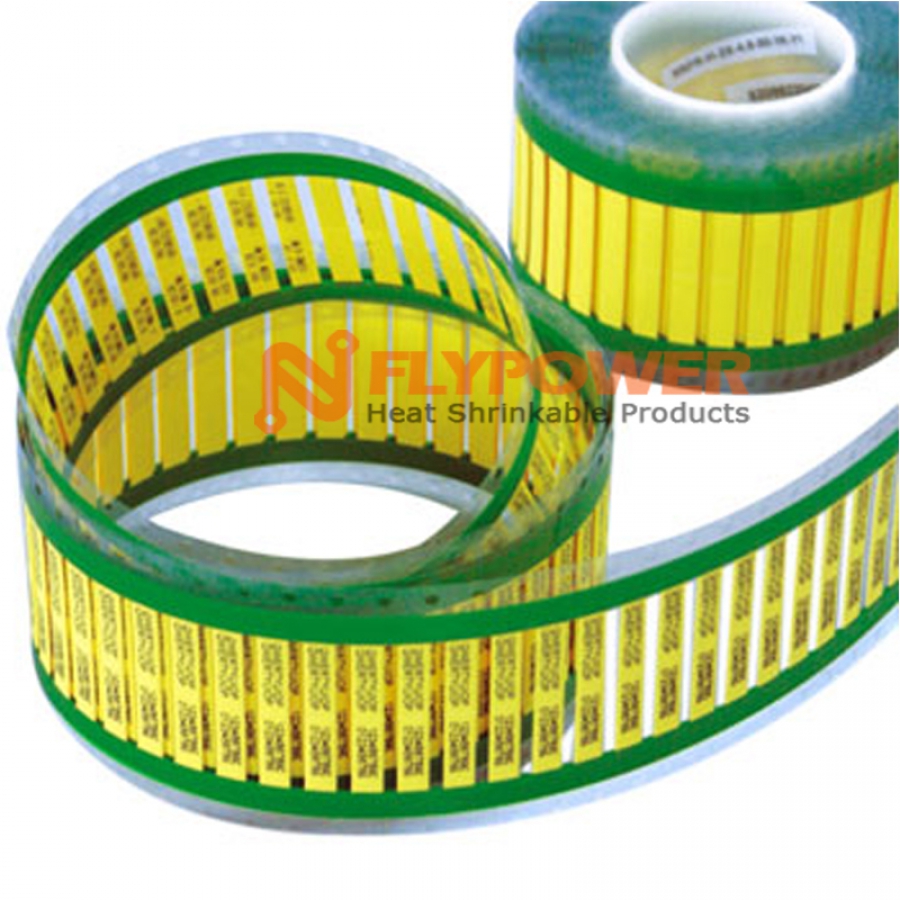

- Characteristics: Halogen free low smoke emission highly flame retardant heat shrink identification marker sleeve is made of environmentally friendly cross-linked polyolefin heat shrinkable materials bomarded with high energy electron beam
-
Operating temperature range: operating temperature：-55℃～+125℃/-67℃～+257℃
Min. Shrink temperature：+85℃/+185℃
Full recovery temperature：+115℃～+200℃/+239℃～+392℃ - Approvals / Specifications: RoHS
- Colors: Red, Yellow, Green, White, Other colors available on request
BH-DIN Shrink ratio-2X:
|
Part Number |
As Supplied (mm) |
After Recovery(mm) |
|||
|
ID(D) |
Flatten Width(w) |
Double Wall Thickness |
ID(d) |
Single Wall Thickness |
|
|
DIN-2X-1.6- |
2.00±0.20 |
3.7±0.3 |
0.48±0.10 |
≤0.79 |
0.45±0.06 |
|
DIN-2X-2.4- |
2.79±0.20 |
5.0±0.3 |
0.48±0.10 |
≤1.18 |
0.49±0.06 |
|
DIN- 2X-3.2- |
3.64±0.23 |
6.3±0.4 |
0.48±0.10 |
≤1.59 |
0.51±0.06 |
|
DIN- 2X-4.8- |
5.26±0.25 |
8.9±0.4 |
0.49±0.10 |
≤2.36 |
0.54±0.06 |
|
DIN- 2X-6.4- |
6.92±0.28 |
11.5±0.4 |
0.50±0.10 |
≤3.18 |
0.56±0.06 |
|
DIN- 2X-9.5- |
10.2±0.32 |
16.7±0.5 |
0.51±0.11 |
≤4.75 |
0.59±0.06 |
|
DIN- 2X-12.7- |
13.5±0.36 |
21.8±0.6 |
0.52±0.11 |
≤6.35 |
0.60±0.07 |
|
DIN- 2X-19- |
20.1±0.40 |
32.2±0.6 |
0.53±0.11 |
≤9.53 |
0.62±0.07 |
|
DIN- 2X-25- |
26.7±0.45 |
42.5±0.7 |
0.55±0.12 |
≤12.7 |
0.63±0.07 |
|
DIN- 2X-38- |
39.8±0.51 |
63.2±0.8 |
0.57±0.12 |
≤19.1 |
0.64±0.07 |
|
DIN- 2X-51- |
53.0±0.56 |
83.9±0.9 |
0.58±0.13 |
≤25.4 |
0.64±0.08 |
|
DIN- 2X-76- |
79.4±0.56 |
125.3±1.0 |
0.59±0.13 |
≤38.1 |
0.64±0.09 |
BH-DIN Shrink ratio-3X:
|
Part Number |
As Supplied (mm) |
After Recovery(mm) |
|||
|
ID(D) |
Flatten Width(w) |
Double Wall Thickness |
ID(d) |
Single Wall Thickness |
|
|
DIN- 3X-1.6- |
2.00±0.20 |
3.7±0.3 |
0.47±0.10 |
≤0.53 |
0.52±0.06 |
|
DIN- 3X-2.4- |
2.79±0.20 |
5.0±0.3 |
0.47±0.10 |
≤0.79 |
0.57±0.06 |
|
DIN- 3X-3.2- |
3.64±0.23 |
6.3±0.4 |
0.48±0.10 |
≤1.06 |
0.61±0.06 |
|
DIN- 3X-4.8- |
5.26±0.25 |
8.9±0.4 |
0.49±0.10 |
≤1.59 |
0.67±0.06 |
|
DIN- 3X-6.4- |
6.92±0.28 |
11.5±0.4 |
0.50±0.10 |
≤2.36 |
0.71±0.06 |
|
DIN- 3X-9.5- |
10.2±0.32 |
16.7±0.5 |
0.52±0.11 |
≤3.18 |
0.77±0.06 |
|
DIN- 3X-12.7- |
13.5±0.36 |
21.8±0.6 |
0.53±0.11 |
≤4.75 |
0.80±0.07 |
|
DIN- 3X-19- |
20.1±0.40 |
32.2±0.6 |
0.55±0.11 |
≤6.35 |
0.84±0.07 |
|
DIN- 3X-25- |
26.7±0.45 |
42.5±0.7 |
0.56±0.12 |
≤8.47 |
0.86±0.07 |
|
DIN- 3X-38- |
39.8±0.51 |
63.2±0.8 |
0.57±0.12 |
≤12.9 |
0.89±0.07 |
|
DIN- 3X-51- |
53.0±0.56 |
83.9±0.9 |
0.57±0.13 |
≤17.2 |
0.90±0.08 |
|
DIN- 3X-76- |
79.4±0.56 |
125.3±1.0 |
0.57±0.13 |
≤25.8 |
0.92±0.09 |
|
Material |
The sleeving shall be fabricated from irradiated, thermally stabilized and flame retarded modified polyolefin compound containing no halogens or cadmium in the formulation. |
|
Application range |
Industrial environment ; Rail & mass transit; Aerospace & defense; Marine; |
|
Operating temperature range |
-40---+125℃ |
|
Minimum recovery temperature |
+85℃ |
|
Maximum storage temperature |
+50℃ |
|
Shrink ratio |
2:1, 3:1 |
|
Components |
Halogen-free |
|
Color |
White, Yellow, other color is available if ordered |
|
Printing mode |
Single sided printing and Double sided printing formats available |
|
Supplied mode |
Either Continuous type or Ladder format type is available |
|
Recommended Printers |
Thermal transfer printer |
|
Recommended Ribbons |
WO-80500BK resin ribbon, Black, 100mm(width)*300m(length) |
