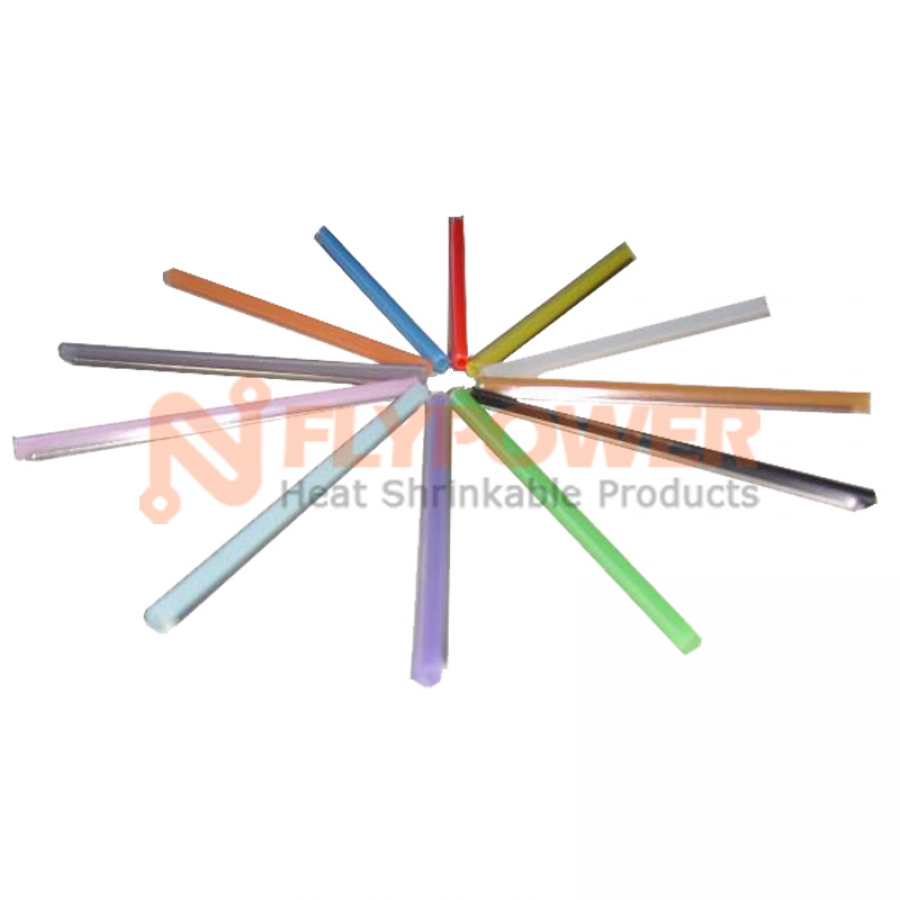

Single heat shrinkable fiber optic splice protector BH-FSP
- Applications: Heat shrinkable fiber optic splice protector provide strength and protection to optical fiber splices
-
Characteristics: Easily use and avoid any damaged to the optical fiber during installation;
Clear sleeve make it easy to detect splice before shrinkage;
Sealing structure make the splice free from effect of temperature and humidity from environment. -
Operating temperature range: Operating temperature: -45℃ to +100℃
Minimum fully recovery temperature: 120℃ - Approvals / Specifications: RoHS
- Colors: Transparent, Other colors available on request
| Model No. | Splice Protection Sleeve (After Shrinking) |
Fusion tube | Steel Rod | Packing (pc/bag) |
|||
| O.D (±0.2mm) |
Length (±1mm) |
I.D (±0.1mm) |
Length (±1mm) |
O.D (±0.1mm) |
Length (±1mm) |
||
| BH-FSP-61/1.5 | 3 | 61 | 1.4 | 61 | 1.5 | 55 | 100 |
| BH-FSP-45/1.5 | 3 | 45 | 1.4 | 45 | 1.5 | 40 | 100 |
| BH-FSP-40/1.5 | 3 | 40 | 1.4 | 45 | 1.5 | 35 | 100 |
| BH-FSP-25/1.5 | 3 | 25 | 1.4 | 25 | 1.5 | 20 | 100 |
| BH-FSP-61/1.2 | 2.6 | 61 | 1.4 | 61 | 1.2 | 55 | 100 |
| BH-FSP-45/1.2 | 2.6 | 45 | 1.4 | 45 | 1.2 | 40 | 100 |
| BH-FSP-40/1.2 | 2.6 | 40 | 1.4 | 45 | 1.2 | 35 | 100 |
| BH-FSP-25/1.2 | 2.6 | 25 | 1.4 | 25 | 1.2 | 20 | 100 |
| BH-FSP-61/1.0 | 2.4 | 61 | 1.4 | 61 | 1 | 57 | 100 |
| BH-FSP-45/1.0 | 2.4 | 45 | 1.4 | 45 | 1 | 41 | 100 |
| BH-FSP-40/1.0 | 2.4 | 40 | 1.4 | 40 | 1 | 35 | 100 |
| BH-FSP-30/1.0 | 2.4 | 30 | 1.4 | 30 | 1 | 25 | 100 |
| BH-FSP-25/1.0 | 2.4 | 25 | 1.4 | 25 | 1 | 21 | 100 |
| BH-FSP 40/0.8 | 2.2 | 40 | 1.4 | 40 | 0.8 | 40 | 100 |
| BH-FSP 25/0.8 | 2.2 | 25 | 1.4 | 25 | 0.8 | 25 | 100 |
| BH-FSP 18/0.8 | 2.2 | 18 | 1.4 | 18 | 0.8 | 18 | 100 |
| BH-FSP 40/0.5 | 1.3 | 40 | 0.35 | 40 | 0.5 | 40 | 100 |
| BH-FSP 25/0.5 | 1.3 | 25 | 0.35 | 25 | 0.5 | 25 | 100 |
| BH-FSP 18/0.5 | 1.3 | 18 | 0.35 | 18 | 0.5 | 18 | 100 |
| BH-FSP 15/0.5 | 1.3 | 15 | 0.35 | 15 | 0.5 | 15 | 100 |
| BH-FSP 10/0.5 | 1.3 | 10 | 0.35 | 10 | 0.5 | 10 | 100 |
Other lengths and sizes are available on request.
|
Property |
Test Method |
Typical Data |
|
Tensile strength |
ASTM D 2671 |
≥18 MP |
|
Ultimate elongation |
ASTM D 2671 |
700% |
|
Density |
ISO R 1183 D |
0.94g/cm² |
|
Dielectric strength |
IEC 243 |
20KV/mm |
|
Dielectric constant |
IEC 243 |
2.5 max. |
|
Longitudinal change |
ASTM D2671 |
±5%. |
