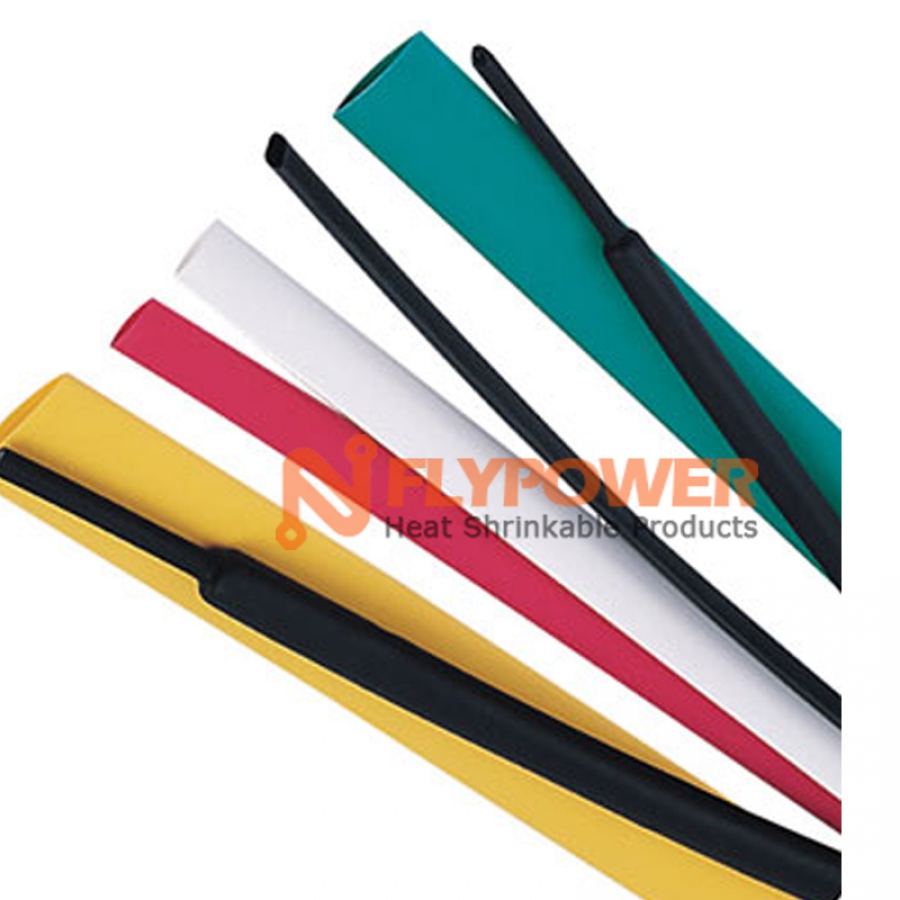

ENVIRONMENT FRIENDLY FLEXIBLE HIGHLY FLAME RETARDANT HEAT SHRINKABLE TUBING SHRINK RATIO 2:1 BH-2F
- Applications: Environment friendly flexible highly flame retardant heat shrinkable tubing Provide both commercial and military applications ,electrically insulation and protects in line components, disconnect terminals and bundle wires for very flexible light duty harnesses. Identifies or color codes, terminals and components.
- Characteristics: BH-2F splices with its high strength and excellent resilience
-
Operating temperature range: Minimum shrink temperature: 70℃
Minimum fully recovery temperature: 100℃ -
Approvals / Specifications: Meet：UL 224 ,SAE-AMS-DTL-23053/5 Class 1&3
Sony-SS-00259,RoHS - Colors: Black, Red, Yellow, Blue, Green, White, Transparent, Other colors available on request
|
Normal Size(mm) |
As supplied(mm) |
After recovered (mm) |
Standard length(m/spool) |
|
|
Inside diameter(mm) |
Inside diameter(Max.) |
Wall thickness(Min.) |
||
|
3/64 |
1.2 |
0.60 |
0.40 |
200 |
|
1/16 |
1.6 |
0.80 |
0.40 |
200 |
|
3/32 |
2.4 |
1.20 |
0.48 |
200 |
|
1/8 |
3.2 |
1.60 |
0.48 |
200 |
|
3/16 |
4.8 |
2.40 |
0.48 |
100 |
|
1/4 |
6.4 |
3.20 |
0.56 |
100 |
|
5/16 |
8.0 |
4.00 |
0.62 |
100 |
|
3/8 |
9.5 |
4.80 |
0.62 |
50 |
|
1/2 |
12.7 |
6.40 |
0.62 |
50 |
|
5/8 |
15.9 |
8.00 |
0.68 |
50 |
|
3/4 |
19.1 |
9.50 |
0.68 |
50 |
|
1 |
25.4 |
12.70 |
0.87 |
50 |
|
11/4 |
31.8 |
15.90 |
1.00 |
50 |
|
11/2 |
38.1 |
19.10 |
1.00 |
50 |
|
2 |
50.8 |
25.40 |
1.10 |
50 |
|
3 |
76.2 |
38.10 |
1.20 |
30 |
|
4 |
102.0 |
50.80 |
1.35 |
30 |
|
5 |
125.0 |
63.50 |
1.40 |
15 |
|
6 |
151.0 |
75.00 |
1.40 |
15 |
Feet spool lengths are available subject to requirement;
Special size, cut pieces are available on request.
|
Property |
Test Method |
Typical Data |
|
Tensile strength |
ASTM D 2671 |
14MPa |
|
Elongation at break |
ASTM D 2671 |
600% |
|
Elongation after aging (175℃/ 168 hrs) |
ASTM D 2671 |
350% |
|
Flammability |
UL 224 /VW-1 / SAE-AMS-DTL-23053/5
|
Pass |
|
Heat shock (250 ℃/ 4hr hrs) |
ASTM D 2671 |
No cracking |
|
Cold bend test (-55℃/ 4 hrs) |
ASTM D 2671 |
No cracking |
|
Dielectric strength |
ASTM D 150 |
20KV/mm |
|
Volume resistance |
ASTM D 876 |
1014Ω.cm |
|
Copper Corrosion |
UL 224 |
Pass |
|
Water absorption |
ASTM D 570 |
0.15% |
|
Chemical resistance |
SAE-AMS-DTL-23053/5 |
Pass |
|
Longitudinal shrinkage |
UL 224 |
0±5% |
|
Eccentricity |
UL 224 |
30% |
